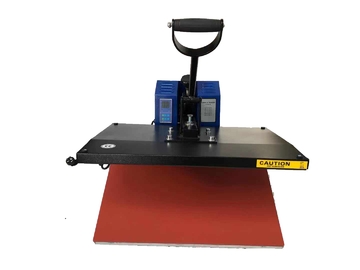

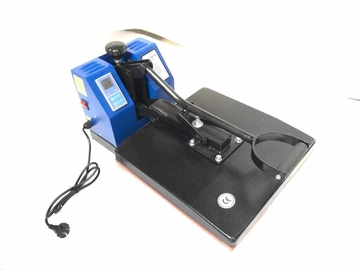

Hand Level Machine, 38*38 hot transfer machine 40*60 flat plate hot stamping machine 50*70 hot transfer machine hot ironing rig clothes transfer machine

Full digital display, PID microcomputer control, high precision, automatic countdown, automatic heat preservation, high temperature alarm and other functions, product quality is guaranteed!

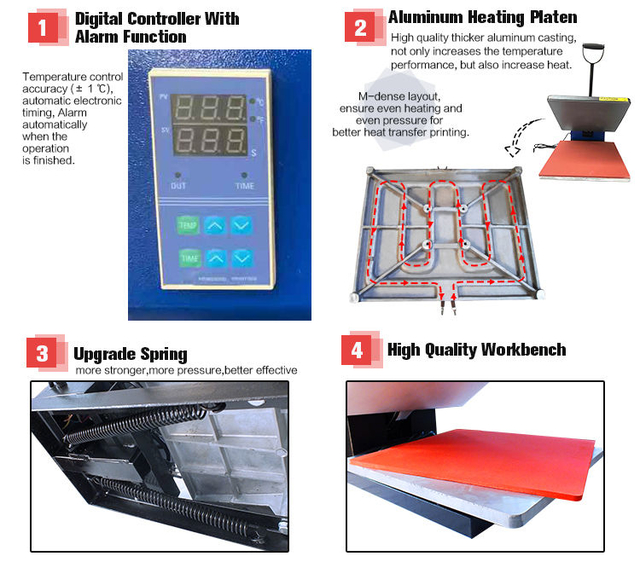

● Intelligent digital display thermostat is used, temperature control is accurate (±1℃);

● Automatic countdown, automatic insulation, high accuracy;

● Heating plate surface smooth, good pyrography effect, easy to clean, anti - oxidation.

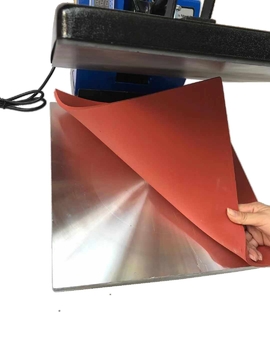

● High temperature resistant elastic foaming silica gel is laid on the table, without deformation at 400℃, so that the transfer products can reach the perfect effect.

This machine can transfer sublimation type, solvent type ink patterns or characters to cotton, hemp, chemical fiber, metal, ceramics, glass and other materials by heat transfer, it can also be used for planting wool hot stamping and foaming printing process heat treatment, which is convenient and practical.

Operation process:

1. Pull up the lever to open the heating plate completely.Plug it in, turn on the main power switch, and the indicator light is on.

Note: Due to the high power of the machine, the whole machine must have proper and strong protective ground wire.

2, adjust the temperature regulator, according to + or - to the appropriate temperature (150℃-200℃), the heating time is about 3 minutes.

3. Adjust the timer to the appropriate time (the time is long or short depending on different materials).

4. When the temperature reaches the set value, the machine will automatically enter the constant temperature state.

5. Put the item to be hot, put the printed paper on the place where the item is to be printed (to the item with the pattern), and then press the hot plate until it is tightly pressed to lock the hot plate automatically

The temperature and time required for hot stamping are as follows:

Pure cotton: dark colored paper 180 degrees, 12-15 seconds

Sublimation paper 200 degrees,40-60 seconds

Polyester: 180 degrees, 15 seconds

Chemical fiber: 150-170 degrees, 10-15 seconds

Hot drilling: 165-200 degrees, 10-20 seconds

Pearl board: 180 degrees, 120-180 seconds

200 degrees, 60-90 seconds

Metal pendant: 180 degrees, 60 seconds

200 degrees, 60-90 seconds

Mouse pad: 180 degrees, 30 seconds

Porcelain plate: 200 degrees, 180 seconds

Key chain: 200 degrees, 100 seconds

Ceramics: 200 degrees, 180 seconds

The above information is only for reference, the actual operation according to the situation to adjust!

Maintenance items:

1.Pressure: The ejector bar on the pressure handle;

2.Temperature: The thermostat is usually set at 180℃;

3.Time: The timer is usually set at 0-30 seconds;

4.If there is any quality problem, please contact us in time.
